Phola Deluxe Spiral Stair Kit (1400mm)

£2,155.00
6 - 8 Weeks
Estimated Delivery 6 - 8 Weeks

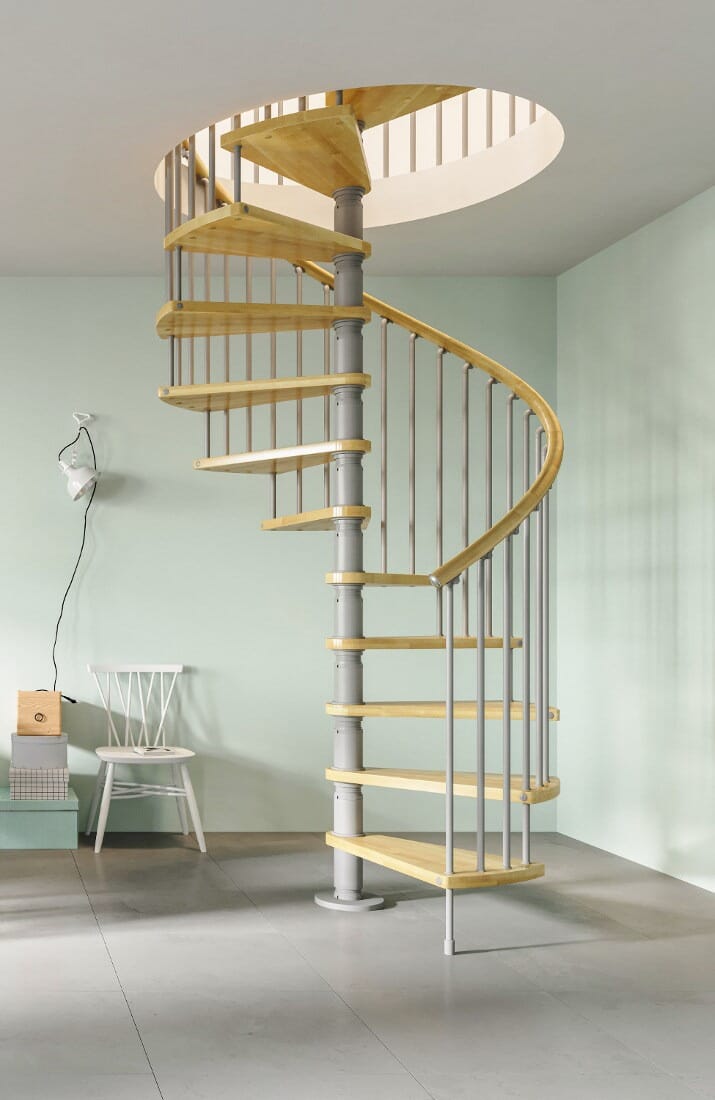

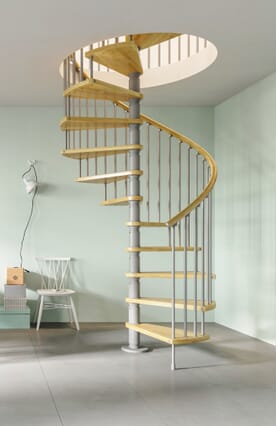

The Phola Deluxe spiral stair combines the warm look of solid Beech treads and handrail with the strength of a sleek steel framework. Available in a number of tread and metalwork colours to ensure it looks perfect in any setting.

Chat with us online now

£2,155.00

For international shipping, contact us to discuss your needs.

Phola Deluxe Spiral Stair Kit - Information
Construction: Manufactured in Steel & Timber (Solid Beech)
Spiral Rotation: Clockwise or Anti-clockwise
Application: Indoor use
Metalwork Colour Option: • White - RAL 9010
• Silver Grey - RAL 9006
• Anthracite Grey
Timber Colour Option: Natural 12
Walnut 25
Wengé 23
Stair Diameter Choice: 1400mm
Recommended
Opening Size:
1400mm Diameter = 1450mm Opening
Floor to Floor Heights: 2050mm to 3120mm (Standard Kit)
3121mm to 3840mm (requires additional Tread Kit(s))
- see Technical Data section
Individual Rise: adjustable from 205mm to 240mm
No. of Treads
(Standard Phola Kit):
11 Treads + 1 Landing Tread
Landing Tread: Universal design - fits a circular or square landing opening
Tread Angles 1400mm Diameter = 30°
Handrail Type: Solid Beech (clear varnished)
Matches the selected Tread colour (Natural / Walnut or Wengé)
Balustrade Detail: Made up of 22mm steel balusters
Tread Detail: Solid 40mm thick Beech Treads (clear varnished)
For colour options - see Product Images
Spiral Stair Layout: View the Phola Technical Data document
Optional Upper Floor Balustrade Kit: See the Accessories List for the available Upper Floor Balustrade components
Optional Riser Bar Kit: Complete with 11 steel bars, one fitted to each tread so it conforms to
the 100mm gap rule (Building Regs)
N.B You will need to check with your local building authority to make sure the Phola Stair for your application is acceptable with Riser Bars.
Stair Installation: Refer to the Phola Installation Instructions.
Package Dimensions
& Weight:
1140mm x 940mm x 600mm;
1400mm Diameter - Weight = 196 kgs
Phola Deluxe Spiral Stair Kit - Heights
Staircase Height No. of Rises Tread Kits Required Column Kit
Required
2050 mm - 2400 mm 10 - -
2260 mm - 2640 mm 11 - -
2460 mm - 2880 mm 12 -------------- (Standard Kit) --------------
2670 mm - 3120 mm 13 1 -
2870 mm - 3360 mm 14 2 -
3080 mm - 3600 mm 15 3 1 *
3280 mm - 3840 mm 16 4 1 *


*
The Column Kit (Small Centre Post) is required for the Phola Deluxe Spiral Stair Kit to achieve higher floor heights up to 3840mm.

Phola Deluxe Spiral Stair Kit - Extras
Products Price (£)
1400mm Diameter - White / Silver Grey / Anthracite Metalwork
- Beech Handrail - 10 to 12 Rises
£2155.00
1400mm Diameter - White / Silver Grey / Anthracite Metalwork
- Beech Handrail - 13 Rises
£2380.00
1400mm Diameter - White / Silver Grey / Anthracite Metalwork
- Beech Handrail - 14 Rises
£2590.00
1400mm Diameter - White / Silver Grey / Anthracite Metalwork
- Beech Handrail - 15 Rises
£2895.00
1400mm Diameter - White / Silver Grey / Anthracite Metalwork
- Beech Handrail - 16 Rises
£3125.00

PH004 / Riser Bar Kit for 10 to 13 Rises
- White / Anthracite or Silver Grey Colour **
£195.00
PH004 / Riser Bar Kit for 14 Rises
-
White / Anthracite or Silver Grey Colour **
£210.00
PH004 / Riser Bar Kit for 15 Rises
-
White / Anthracite or Silver Grey Colour **
£225.00
PH004 / Riser Bar Kit for 16 Rises
-
White / Anthracite or Silver Grey Colour **
£240.00


Above Prices include VAT



If you require the Stair Kit with any of the Components featured in the chart below then an order will need to be placed by contacting the Sales office on 01243 785 246 or alternatively emailing: sales@loftcentre.co.uk.

Upper Floor Balustrade Components
Component Price (£)
PH005 / Balustrade Kit (1000mm length)
- 8 balusters (White / Silver Grey or Anthracite) plus fixings
**
£120.00
PH006 / Baluster to Floor - Strengthener Kit ** £45.00
PH007 / Baluster to Wall - Strengthener Kit ** £32.00
PH008 / Baluster to Baluster - Strengthener Kit ** £32.00
PH009 / Beech Handrail Kit (1000mm straight length) **
- Handrail available in the Natural / Walnut or Wengé shade
£70.00
PH010 / Rounded Beech Handrail Kit (1000mm) - suitable for 1450 Ø **
- Handrail available in the Natural / Walnut or Wengé shade
£130.00


Above Prices include VAT


**
If these products are purchased separately they will incur an additional carriage cost - please ring the Sales Office on 01243 785 246 or email: sales@loftcentre.co.uk for details.

This product is not on a 1-3 working days schedule.
It comes directly from our supplier as we do not hold stock.

This is a made to order / bespoke product (not marked as ‘Estimated Delivery 1-3 days’) and once the manufacturing process has been started, you will not be able to cancel your order. If a cancellation enquiry is made and manufacturing has not started then we will issue a full refund back onto the same payment type as the product(s) were first purchased.

The delivery timescale is referenced at the top of the product page and will be confirmed to you at the time of order.

Please read our full terms and conditions regarding the delivery procedure.

The delivery will be made by a transport carrier organised by the manufacturer, so it is important that you provide a contact telephone number.
As the transport carrier will contact you 24 hours prior to the delivery being scheduled.
Deliveries are usually made between 8:00am to 6:00pm Monday to Friday (excludes Bank Holidays).

Orders can be placed on our website for delivery destinations within the UK Mainland (England, Wales and Scotland).
For delivery destinations situated in the Highlands & Islands, Isle of Wight, Channel Islands, Isle of Man and Northern Ireland, please contact our Sales Office by email - sales@loftcentre.co.uk to obtain a transport costing for the product.

For European or most Worldwide delivery destinations please email our Sales Office - sales@loftcentre.co.uk with your enquiry detailing the product you are interested in, together with your full delivery address and contact information.
We can then return a Quotation for the product and delivery costs once this has been sourced from the transport company.

Important - please read before purchase
It is your responsibility to ensure that any local authority approvals necessary have been obtained. This will vary according to your application and we advise you to always check before going ahead with a purchase.

Fixed Ladders, Space Savers, Spirals and Loft Stairs are covered in the building regulations and we recommend you confirm with the Local Building Control Department regarding their suitability for any project prior to specifying.

Therefore it is your responsibility to ensure that any local authority approvals necessary have been obtained. This will vary according to your application and we advise you to always check before going ahead with a purchase.

Many of our products have been widely used in the past in conjunction with Building Control, but the interpretation of the requirements for any particular situation remains solely with your Local Building Control Department.
