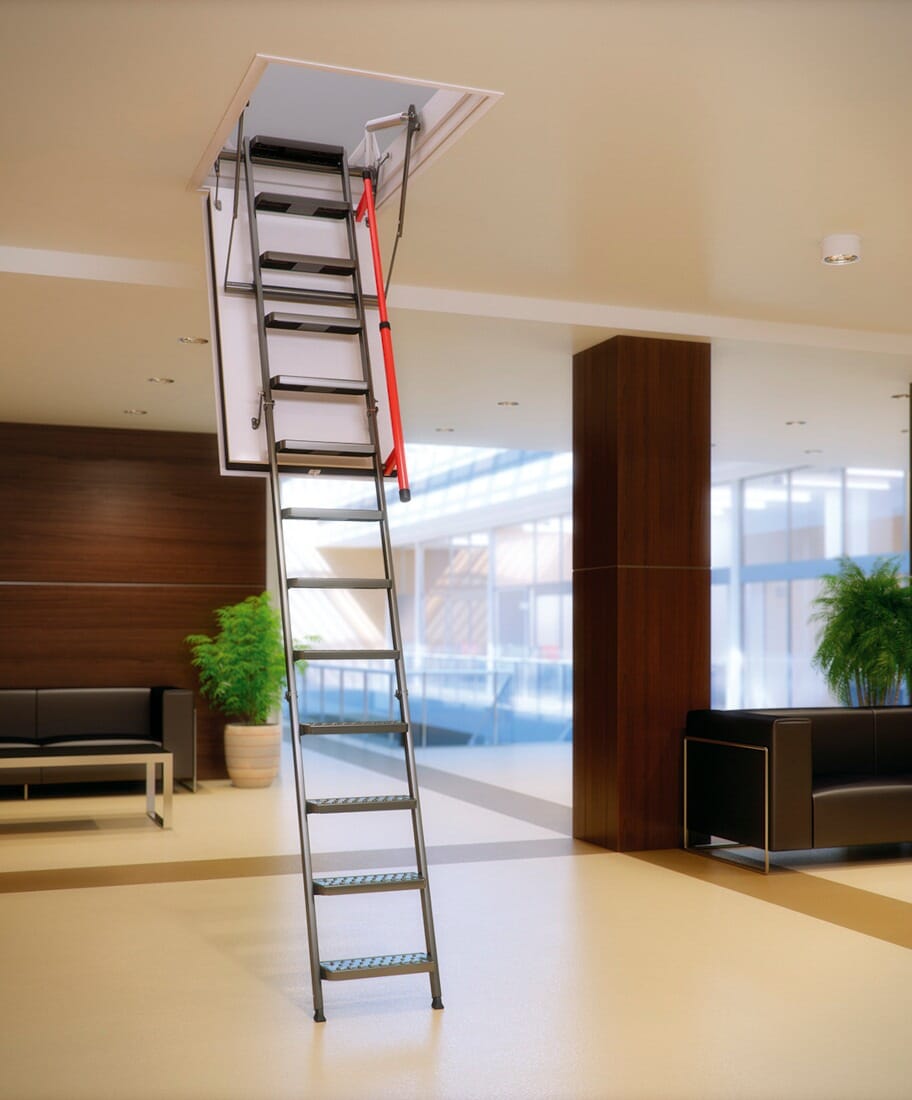

Fakro LMF 120 Fire Rated Metal Folding Loft Ladder
The LMF 120 metal folding loft ladder incorporates a specially designed trapdoor that provides 120 minute protection against fire penetration. It also provides a comfortable and safe access route to your loft space.
- Supplied as a complete unit with a 120 minute fire rated trapdoor, steel casing and metal ladder for quick and easy installation.
- Available in a range of loft opening sizes - see Technical Data section.
- Steel ladder powder coated in Silver Grey (RAL 9006) with 130mm deep non-slip grooved treads folding into 3 sections.
- Suits floor to ceiling heights up to 3050mm.
- Minimum ceiling height requirements for 2800mm:
- 2330mm for a 3-section loft ladder - Minimum ceiling height requirements for 3050mm:
- 2560mm for a 3-section loft ladder - Complete with 82mm thick insulated trapdoor (white faced on both sides) providing a U-value: 0.79 W/m²K.
- Supplied with a Red Metal Handrail, that has a hidden mechanism to aid the folding and unfolding of the ladder.
- The LMF 120 Loft Ladder prevents fire from spreading to the upper or lower fire-free storey for 120 minutes.
- The steel casing frame (painted White) has an integrated metal architrave lining and quick fit brackets to help with the installation.
- The design of the ladder incorporates a short distance between the top tread and the loft floor.
- No storage space needed in the loft as ladder stores completely on hatch.
- Operating pole included.
- Telescopic stile ends enable quick adjustment of ladder length to suit ceiling height.
- For Loft Ladder operating space - see LMF 120 - Technical Specification document.
- Optional Metal Loft Exit Grab Rails measure 900mm high & 515mm wide (available in black) - see Product Images.
- Tested and certified to EN 14975 (European Ladder Standard).
- Max working load: 200 kg.
- 3 year Manufacturer's Warranty
Fakro LMF 120 Fire Rated Loft Ladder - Technical Info | |
Ladder Type: | 3 Section Folding |
Fire Resistance: | 120 Minutes |
Classification: | EI² 120, according to EN 13501-2 |
Maximum Ceiling Height: | 3050mm - See Chart below |
Opening Sizes: | See Chart below |
Casing Frame Sizes: | See Chart below |
U-Value: | 0.79 W/m²K |
Ladder Angle: | 70° |
Ladder Tread Width: | 350mm |
Ladder Tread Depth: | 130mm |
Trapdoor Thickness: | 82mm |
Steel Casing Frame Height: | 160mm |
Distance between Treads: | 250mm |
Additional Dimensions: | see Technical Specification document |
Fakro LMF 120 Fire Rated Loft Ladder - Sizes | |||
Ceiling Height | Product Sizes | ||
---|---|---|---|
2330mm to 2800mm | 1200mm (Structural Opening Length) 1180mm (Casing Frame Length) |
x | 600mm (Structural Opening Width) 580mm (Casing Frame Width) |
" " | 1200mm (Structural Opening Length) 1180mm (Casing Frame Length) |
x | 700mm (Structural Opening Width) 680mm (Casing Frame Width) |
" " | 1300mm (Structural Opening Length) 1280mm (Casing Frame Length) |
x | 700mm (Structural Opening Width) 680mm (Casing Frame Width) |
" " | 1400mm (Structural Opening Length) 1380mm (Casing Frame Length) |
x | 700mm (Structural Opening Width) 680mm (Casing Frame Width) |
2560mm to 3050mm | 1300mm (Structural Opening Length) 1280mm (Casing Frame Length) |
x | 700mm (Structural Opening Width) 680mm (Casing Frame Width) |
" " | 1400mm (Structural Opening Length) 1380mm (Casing Frame Length) |
x | 700mm (Structural Opening Width) 680mm (Casing Frame Width) |
This product is not on a 1-3 working days schedule.
It comes directly from our supplier as we do not hold stock.
This is a made to order / bespoke product (not marked as ‘Estimated Delivery 1-3 days’) and once the manufacturing process has been started, you will not be able to cancel your order. If a cancellation enquiry is made and manufacturing has not started then we will issue a full refund back onto the same payment type as the product(s) were first purchased.
The delivery timescale is referenced at the top of the product page and will be confirmed to you at the time of order.
Please read our full terms and conditions regarding the delivery procedure.
The delivery will be made by a transport carrier organised by the manufacturer, so it is important that you provide a contact telephone number.
As the transport carrier will contact you 24 hours prior to the delivery being scheduled.
Deliveries are usually made between 8:00am to 6:00pm Monday to Friday (excludes Bank Holidays).
Orders can be placed on our website for delivery destinations within the UK Mainland (England, Wales and Scotland).
For delivery destinations situated in the Highlands & Islands, Isle of Wight, Channel Islands, Isle of Man and Northern Ireland, please contact our Sales Office by email - [email protected] to obtain a transport costing for the product.
For European or most Worldwide delivery destinations please email our Sales Office - [email protected] with your enquiry detailing the product you are interested in, together with your full delivery address and contact information.
We can then return a Quotation for the product and delivery costs once this has been sourced from the transport company.
Important - please read before purchase
Fixed Ladders, Space Savers, Spirals and Loft Stairs are covered in the building regulations and we recommend you confirm with the Local Building Control Department regarding their suitability for any project prior to specifying.
Therefore it is your responsibility to ensure that any local authority approvals necessary have been obtained. This will vary according to your application and we advise you to always check before going ahead with a purchase.
Many of our products have been widely used in the past in conjunction with Building Control, but the interpretation of the requirements for any particular situation remains solely with your Local Building Control Department.
