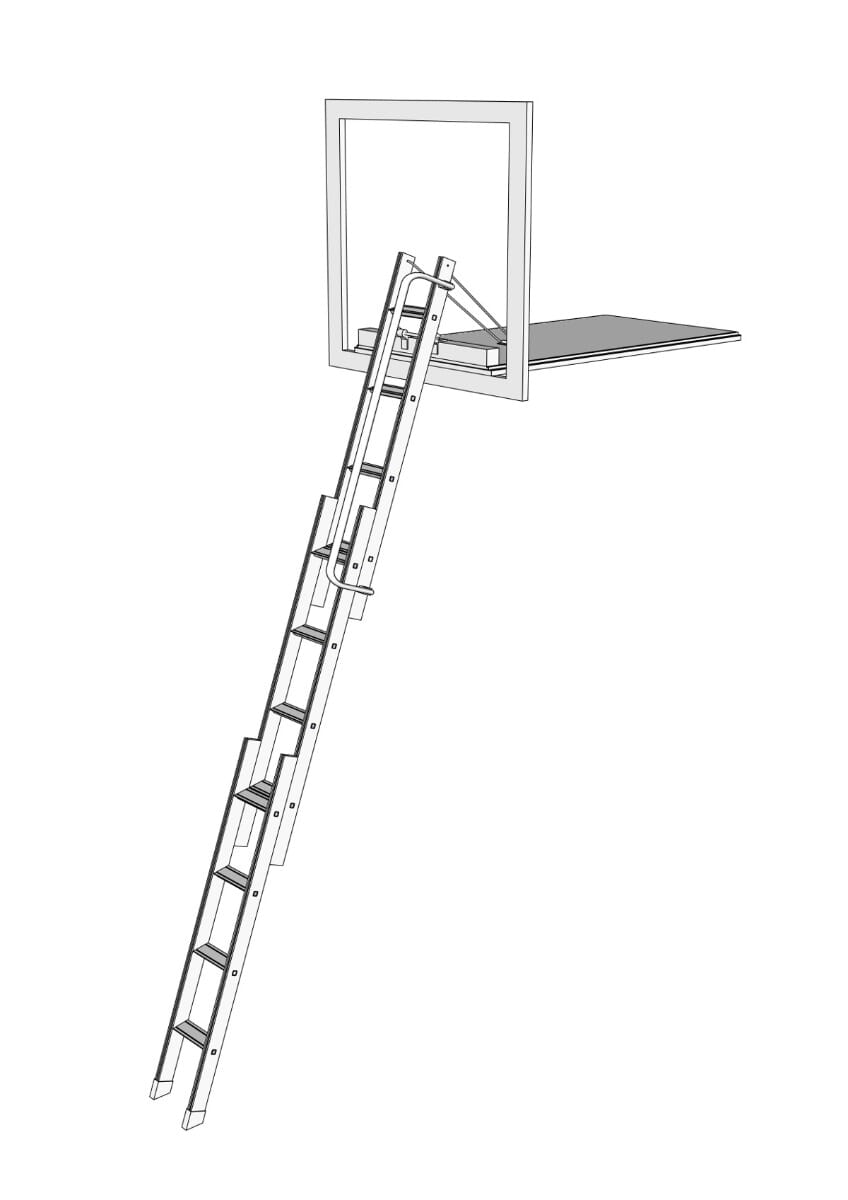

Loft Centre Aluminium Sliding Vertical Carriage Ladder
The heavy duty rated Aluminium Vertical Carriage loft ladder (VCL) is ideal for access through a vertical door, upward opening ceiling hatch or onto a platform / mezzanine floor.
- Watch the Aluminium Sliding Vertical Carriage Ladder being operated.
- High strength extruded aluminium construction.
- Specially designed carriage board (MDF) mounted on nylon rollers enables unit to roll quietly clear of floor’s edge.
- Suits floor to floor heights up to 3.21m.
- Suits existing vertical loft hatch openings from 900mm (H) x 600mm (W).
- Can also be used for access to a mezzanine floor application.
- Suitable for domestic, commercial or industrial use.
- Uses a spring counterbalanced system allowing for a smooth and safe deployment of the ladder.
- Opening in the wall can be closed by a door (supplied by others) with a maximum thickness of 25mm.
- For a trapdoor thickness above 25mm, please refer to the VCL Carriage Board Adaptions document.
- Supplied with two metal handrails as standard.
- Complete with operating pole and fittings.
- Optional Metal Loft Exit Grab Rails measure 900mm high & 515mm wide (available in black) - Ideal for mezzanine applications - see Product Images.
Note: The VCL loft ladder does not come supplied with a trapdoor / hatch.
| Aluminium Vertical Carriage Loft Ladder - Technical Info | |
| Model No: | VCL |
| Ladder Type: | 2 Section Sliding |
| Minimum Floor Height: | 2300mm |
| Maximum Floor Height: | 3210mm |
| Minimum Opening Size: | 900mm (H) x 600mm (W) |
| Ladder Width: | 402mm |
| Ladder Width (Including Handrails): | 466mm |
| Useable Tread Width: | 330mm |
| Ladder Tread Depth: | 75mm |
| Minimum Storage Space (Length): | 2250mm |
| Loft Clearance Required (Height): | 1070mm |
| Max. Height of Ladder in stored position: | 500mm |
| Max Working Load: | 150 kgs |
