Dolle ACADIA Balustrade Kit (Floor Mounting)
The Dolle ACADIA Balustrade Kit is a solid and stylish system that can be extended in 1 metre increments. Ideal for outdoor applications with the kit ready to be floor mounted to your existing balcony, patio or decking.
- Suitable for outdoor use.
- The ACADIA balustrade system is ideal for your outside balconies, patios or garden areas.
- The components are made from aluminium, powder coated to provide a black colour finish (RAL 9005). Also ideal for protecting against wear and corrosion.
- A single kit comes complete with a 1 metre aluminium handrail, 2 square-shaped upright posts and a pre-mounted balustrade section with 8 square balusters plus all fittings.
- For larger applications it is possible to connect multiple ACADIA balustrade kits in a straight run as they are supplied with a joining connector – see ACADIA Configurations document.
- The aluminium upright posts have base plates suitable for floor mounting.
- Two types of fixings are available for securing the upright posts into either wood or concrete.
- Easy to install with full installation instructions provided.
- Balustrade height at 965mm.
- Aluminium handrail and pre-mounted balustrade section can be cut down to suit smaller applications.
- The aluminium handrail will be provided with 2 end caps to finish off the design.

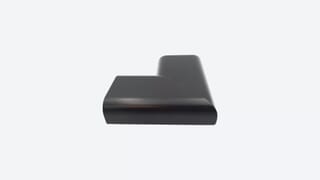

- Corner Kits can be purchased to enable the balustrade system to perform a 90° turn.
Important Note
It is your responsibility to ensure that any local authority approvals necessary have been obtained. This will vary according to your application and we advise you to always check before going ahead with a purchase.
| Dolle ACADIA Balustrade Kit (Floor Mounting) - Technical Info | |
| Model No: | 1088611 |
| Application: | Outdoor use |
| Colour: | Black (RAL 9005) |
| Mounting Type: | Floor |
| No. of Vertical Infills: | 8 |
| No. of Upright Posts: | 2 |
| Handrail Length: | 1000mm |
| Handrail Width: | 70mm |
| Handrail Material: | Aluminium |
| Upright Post Material: | Aluminium |
| Balustrade Height: | 965mm |
| Distance between Vertical Infills: | 91.3mm |
