Dolle Saturne Half Spiral Stair Kit
The Dolle Saturne Half Spiral Stair Kit with its semicircular design (180° rotation) and choice of spruce or solid beech finish looks great in any setting. It can be configured to turn left or right and an ideal solution where space is restricted.
- Designed as a half spiral stair kit with a 180° rotation, features 12 shaped treads.
- Includes a tubular metal handrail / balustrade, powder coated black.

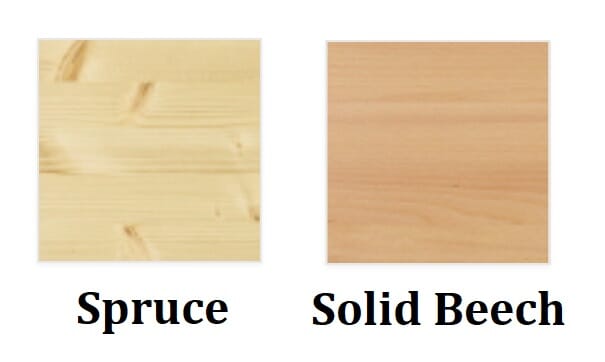

- Available in Spruce or Solid Beech timber options.
- Two kit sizes available, one to suit a floor area of 1200mm (L) x 600mm (W) and the wider kit at 1400mm (L) x 700mm (W).
- Suits floor to floor heights up to 2990mm.
- The Saturne Stair Kit has an individual step rise of 230mm, this can not be adjusted meaning the kit can only be mounted at specific heights - see chart below.
- The kit can be mounted to turn to the left or right.
- Ceiling Opening Sizes:
Kit size 1200mm x 600mm requires an opening size: 1250mm x 650mm.
Kit size 1400mm x 700mm requires an opening size: 1450mm x 750mm. - Provided with full installation instructions.
Dolle Saturne Half Spiral Stair Kit - Possible Heights | ||
Mounting Height of top step |
No. of Steps | Floor Height Achievable ** |
---|---|---|
2760mm | 12 | 2990mm |
2530mm | 11 | 2760mm |
2300mm | 10 | 2530mm |
2070mm | 9 | 2300mm |
** This height is one rise above the Mounting Height of the top step.
Dolle Saturne Half Spiral Stair Kit - Technical Info | |
Model No: | 4620510-6900 |
Stair Size: | 1200mm x 600mm |
Configuration: | 180° rotation turning to the left or right |
Maximum Floor Height: | 2990mm |
Timber Choice: | Spruce or Solid Beech |
Handrail / Balustrade Detail: | Tubular metal balustrade made up of 18mm balusters (powder coated black) |
Opening Size: | 1250mm x 650mm * |
No. of Treads: | 12 |
Tread Design: | Staggered steps |
Tread Dimensions: | Thickness: 30mm Width: 220mm Total length: 655mm |
* Recommendation from Manufacturer.
Dolle Saturne Half Spiral Stair Kit - Technical Info | |
Model No: | 4620510-7400 |
Stair Size: | 1400mm x 700mm |
Configuration: | 180° rotation turning to the left or right |
Maximum Floor Height: | 2990mm |
Timber Choice: | Spruce or Solid Beech |
Handrail / Balustrade Detail: | Tubular metal balustrade made up of 18mm balusters (powder coated black) |
Opening Size: | 1450mm x 750mm * |
No. of Treads: | 12 |
Tread Design: | Staggered steps |
Tread Dimensions: | Thickness: 30mm Width: 220mm Total length: 755mm |
* Recommendation from Manufacturer.
This product is not on a 1-3 working days schedule.
It comes directly from our supplier as we do not hold stock.
This is a made to order / bespoke product (not marked as ‘Estimated Delivery 1-3 days’) and once the manufacturing process has been started, you will not be able to cancel your order. If a cancellation enquiry is made and manufacturing has not started then we will issue a full refund back onto the same payment type as the product(s) were first purchased.
The delivery timescale is referenced at the top of the product page and will be confirmed to you at the time of order.
Please read our full terms and conditions regarding the delivery procedure.
The delivery will be made by a transport carrier organised by the manufacturer, so it is important that you provide a contact telephone number.
As the transport carrier will contact you 24 hours prior to the delivery being scheduled.
Deliveries are usually made between 8:00am to 6:00pm Monday to Friday (excludes Bank Holidays).
Orders can be placed on our website for delivery destinations within the UK Mainland (England, Wales and Scotland).
For delivery destinations situated in the Highlands & Islands, Isle of Wight, Channel Islands, Isle of Man and Northern Ireland, please contact our Sales Office by email - [email protected] to obtain a transport costing for the product.
For European or most Worldwide delivery destinations please email our Sales Office - [email protected] with your enquiry detailing the product you are interested in, together with your full delivery address and contact information.
We can then return a Quotation for the product and delivery costs once this has been sourced from the transport company.
Important - please read before purchase
Fixed Ladders, Space Savers, Spirals and Loft Stairs are covered in the building regulations and we recommend you confirm with the Local Building Control Department regarding their suitability for any project prior to specifying.
Therefore it is your responsibility to ensure that any local authority approvals necessary have been obtained. This will vary according to your application and we advise you to always check before going ahead with a purchase.
Many of our products have been widely used in the past in conjunction with Building Control, but the interpretation of the requirements for any particular situation remains solely with your Local Building Control Department.
