Dolle ClickFix 76 Timber Folding Loft Ladder (1150 x 550mm)

From £375.00

To £580.00

3 - 5 Days

The ClickFix 76 offers a 3 stage process of clicking together the casing, ladder and trapdoor without the use of tools for a much quicker and simpler assembly. Reduces heat loss by up to 86% (compared to uninsulated loft ladders) and thus provides a high level of insulation.

Customize Dolle ClickFix 76 Timber Folding Loft Ladder (1150 x 550mm)

* Required Fields

Your Customization
Dolle ClickFix 76 Timber Folding Loft Ladder (1150 x 550mm)
Dolle ClickFix 76 Timber Folding Loft Ladder (1150 x 550mm)

In stock

Chat with us online now


For international shipping, contact us to discuss your needs.

    • Supplied as a complete unit with a white faced trapdoor, primed timber casing and loft ladder.
    • Uses unique patented ClickFix technology for a quick and easy installation.
    • Suitable for a structural opening size: 1150 x 550mm.
    • Top quality pine ladder with non-slip beech treads folding into 4 sections **
    • Suits floor to ceiling heights up to 2.77m.
    • Complete with 70mm insulated trapdoor and double draught excluder providing a U-value: 0.49 W/m²K.
    • No storage space needed in the loft as ladder stores completely on hatch.
    • Effortless counterbalance operation.
    • Reduces heat loss compared to Traditional Loft Ladders - see Chart below.
    • Hidden trapdoor hinges are an added feature and make it easier to paint, varnish or stain the trapdoor.
    • Pair of plastic ladder feet (black) included.
    • Comes with plastic architraves to enhance the finish.
    • 8 kg lighter than other traditional timber folding loft ladders.
    • Optional Timber Balustrade Kit available - used to guard the loft floor opening - see Product Images.
    • Optional Metal Loft Exit Grab Rails measure 900mm high & 515mm wide (available in black) - see Product Images.
    • Reduced assembly time by up to 30 minutes.
    • Tested according to EN 14975 (European Ladder Standard).
    • Max working load: 150 kg.
    • Product manufactured in an ISO9001:2008 factory.
    • For further assistance with the installation, please view the Manufacturers Installation Video

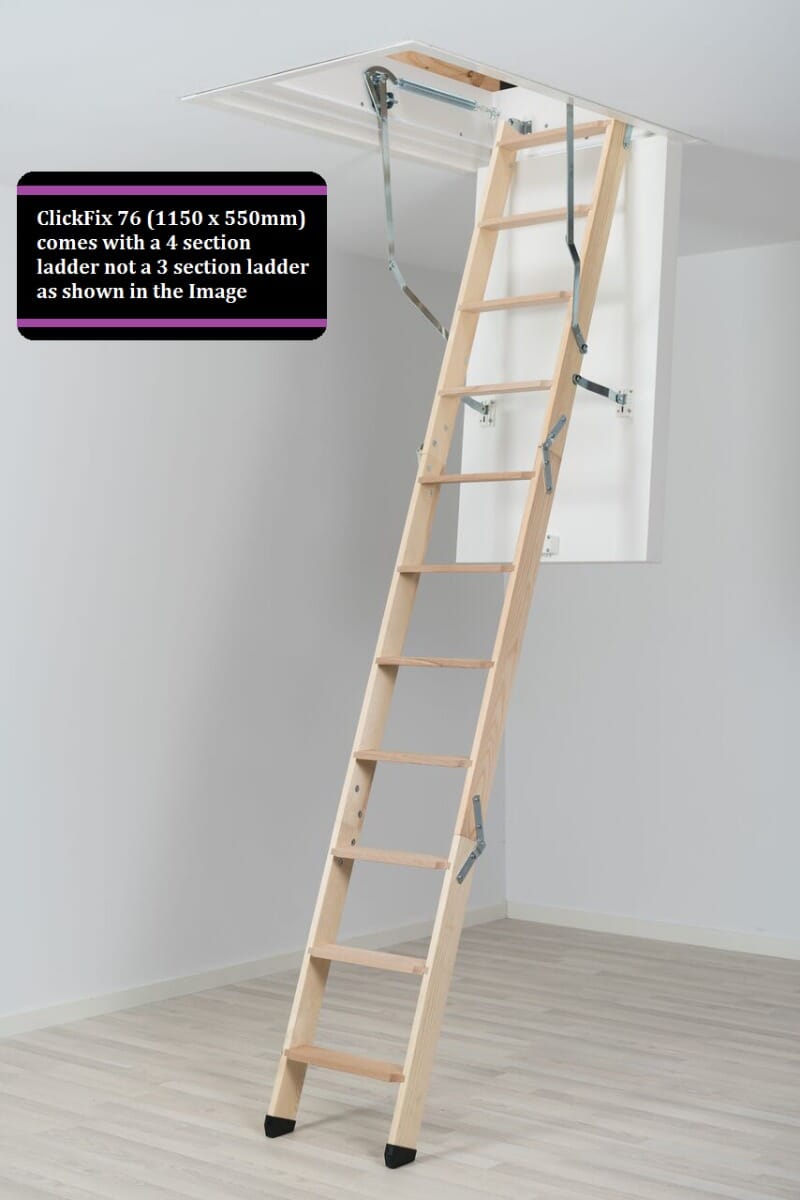

    ** All Product Images show a 3 section Loft Ladder but for the 1150 x 550mm option it will be provided with a 4 section Loft Ladder.

    ClickFix 76 vs. Traditional Loft Ladder - Heat Loss
    Product: Dolle ClickFix 76 Loft Ladder
    (70mm Insulated Trapdoor)
    Traditional Loft Ladder
    (26mm Insulated Trapdoor)
    Heat Loss: No thermal bridges Many thermal bridges


    ClickFix Thermo Traditional Thermo
    U-value calculated

    Tested value
    0.46 W/m²K

    0.49 W/m²K
    1.33 W/m²K

    1.60 W/m²K
    Dolle ClickFix (1150 x 550mm) - Technical Info
    Model No: 40644
    Ladder Type: 4 Section
    Maximum Ceiling Height: 2770mm
    No. of Treads: 12
    Opening Size: 1150 x 550mm
    Casing Size: 1130 x 540mm
    Insulation: 70mm
    U-Value: 0.49 W/m²K
    Ladder Width: 400mm
    Ladder Tread Depth: 83mm
    Ladder Tread Thickness: 17.5mm
    Ladder Tread Width: 358mm
    Trapdoor Thickness: 76mm
    String Thickness: 21mm
    String Depth: 84mm
    Casing Height: 240mm
    Casing Thickness: 18mm
    Distance between Treads: 250mm
